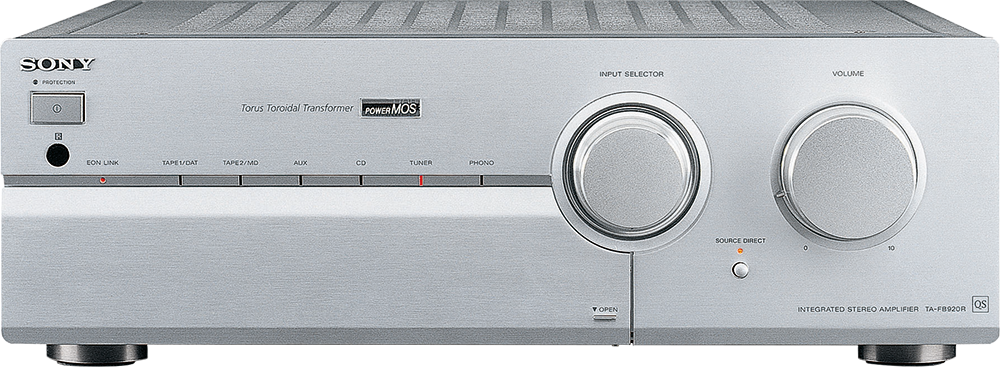

Sony TA-FB920R

TA-FB920R

MSRP € ,--

...

MODEL	Sony TA-FB920R
Introduction Year	1998
Specifications
Number of channels	2
Output power 1 kHz	2 x 120 Watt / 4 Ohms 2 x 80 Watt / 8 Ohms
Output power 20 - 20.000 Hz	unk.
Speaker impedance	4 - 16 Ohms
Output bandwidth	unk.
Dynamic headroom	unk.
Total harmonic distortion	< 0,008% at 10 Watt output
Intermodulation distortion	unk.
Dynamic range	unk.
Slew rate (Throughrate)	unk.
Frequency response
- Line/Tape	7 - 100.000 Hz
- Phono MM / MC	20 - 20.000 (±0,5 dB) / -
Residual noise	unk.
Damping factor	100 (8 Ohms, 1 kHz)
Signal-to-noise ratio
- Line/Tape	105 dB
- Phono MM	94 dB
- Phono MC	-
Input sensitivity and impedance
- Line/Tape	unk.
- Phono MM	unk.
- Phono MC	-
Maximum input capacity (1 kHz)
- Phono MM / MC	unk.
Outputs
- Rec Out	150 mV, 1 kOhm
- Headphones	10 mW (8 Ohms)
Features
Tone controls	•
Loudness	•
Graphic equalizer	-
Analog inputs (audio)	2 x Tape, AUX, CD, Tuner, Phono
Analog inputs (audio and video)	-
Digital inputs (audio)	-
Built-in Digital to analog converter	-
Phono Input	MM
Subsonic filter	•
Low filter	-
High filter	-
CD / Source Direct	Source
Adapter switch	-
Rec Out selector	-
Tape Monitor	•
Muting switch	-
Surround effects	-
Mono/stereo/reverb switch	-
Balance control	•
EON link with Sony RDS tuner	•
Microphone input	-
Headphone output	•
Speaker connection	A, B, A+B
Remote Control included	RM-S316
AC outlets	2 x Switched
Power consumption	210 Watts
Dimensions wxhxd mm	430 x 150 x 410
Weight	10,3 kg
• = present \| - = not present \| unk. = unknown \| Typing errors and errors taken from sources reserved. No rights can be derived from this overview.
